Organize views

You can organize views into folders to keep the workspace clean and easy to navigate.

Create folders

To create a folder use / in the title.
For example, the following view will have the title Production, and will be nested under Deployment folder:

views {
  view {
    title 'Deployment / Production'
  }
}

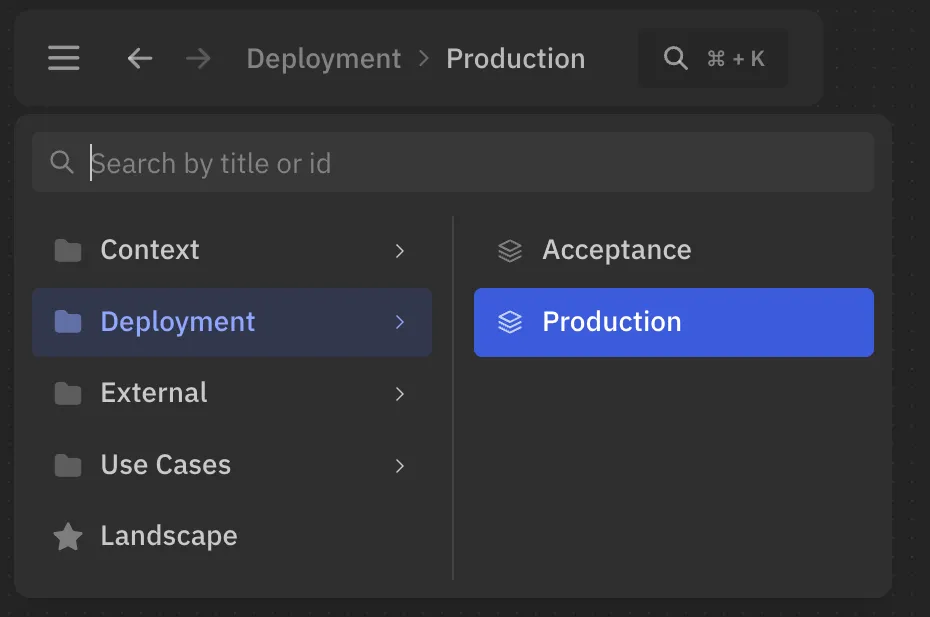

On the UI, this view will be displayed as:

Views can be defined in the same file, but placed in different folders:

views {
  dynamic view {
    title 'Use Cases / 16.2 Checkout / Checkout flow'
  }

  deployment view {
    title 'Deployments / Staging / Checkout microservice'
  }
}

Common folder

You can specify a common folder for the views block.
Every view defined inside will be placed under that folder:

// Common folder for all views in the block
views 'Domain 1 / Subdomain' {

  view {
    // Will be displayed as 'Domain 1 / Subdomain / Landscape'
    title 'Landscape'
  }

  dynamic view {
    // You can add nested folder
    // Will be displayed as 'Domain 1 / Subdomain / Use Cases / 16.2 Checkout'
    title 'Use Cases / 16.2 Checkout'
  }
}

Caution

This feature is enabled by default in the UI, except for library usage.

// To enable this feature:
<LikeC4Diagram
  controls="next"
/>

// To disable this feature:
<LikeC4Diagram
  controls={true} // or controls={false}
/>

// For bundled version:
<LikeC4View
  viewId="index"
  browser={{
    controls: "next"
  }}
/>
